OPERATION GUIDELINES
JIB INSTALLATION AND REMOVAL
- Get the best deals on Terex Heavy Equipment Manuals & Books for Terex when you shop the largest online selection at eBay.com. Free shipping on many items. TEREX TELELECT DIGGER DERRICK PARTS, SERVICE, OPERATION MANUAL WITH DVD. Terex TXC225LC-2 Excavator Operation & Maintenance Manual.
- Digger Derrick Load Chart Manual. The reading and/or using person or entities using this publication for and in consideration of the assistance, cooperation, and information given by the National Com- mission for the Certification of Crane Operators (NCCCO) in this publication, Digger Derrick.
The jib assembly, which consists of the jib mounting bracket and the jib, may be installed or removed as a
To install the jib in the boom tip, use the following procedures:
a.Attach the jib mounting bracket (1) to boom tip by aligning mounting holes in jib mounting bracket (1)
with mounting holes in boom tip. Secure in place with pin(s) (5).
b.Remove pin (3) from jib mounting bracket (1) and slide jib (4) into jib mounting bracket (1). Secure in
2.To install as complete assembly:
a.Attach the jib (4) and jib mounting bracket (1) to boom tip by aligning holes in jib mounting bracket (1)
b.Secure in place with pins (5).
c.After installation, check the roller(s), sheaves, and angle indicator for ease of operation. Lubricate if
d.Route winch line to the jib sheave as depicted on the diagrams. Starting at the winch, follow A to B.
When installing the jib assembly check pins, rollers, sheaves, jib pivot points, jib extension points, and jib
rest, check for cracks, unusual wear, and missing or damaged hardware. If any discrepancies are found,
To remove the jib in the boom tip, use the following procedures:
a.Remove winch line from jib boom and jib mounting bracket (1).
![Telelect Telelect](https://mirkinc.us/images/thumbs/0000540_null_550.jpeg)

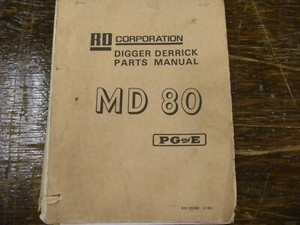

![Digger derrick truck parts Digger derrick truck parts](https://i.ebayimg.com/images/g/xQcAAOSwLdVctOr8/s-l300.jpg)
